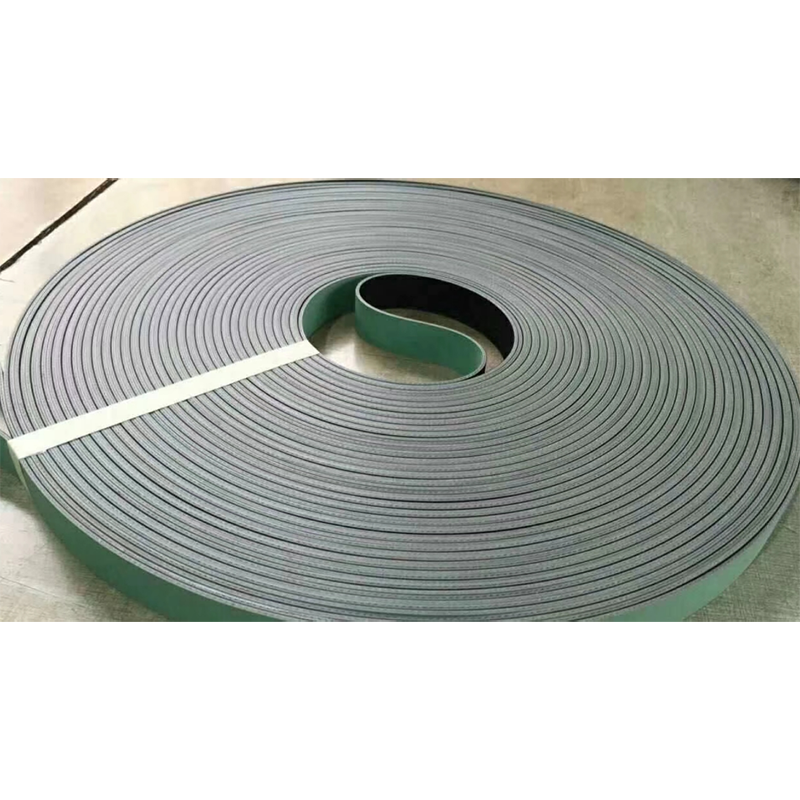

TC-belts refer to polyester power transmission belts, also called PET flat drive belts. The key difference from PA sandwich flat drive belt is that TC-belts use PET fabrics as tension member, which result in its special application performances and usage condition. Therefore, to ensure the good quality, the TC-belts from GC all consist of premium PET fabric
The same as PA sandwich belt, TC-belt also use NBR as surface cover material. And its core layer PET fabric, a very dimensional stable substance with 1% standard elongation rate, which makes TC-belt shows great performances in high speed running, medium-extreme duty application conditions. The key advantages as follows
Energy cost saving
Rather good flexibility
Very high speed possibility
Suitable for two-sided power driving
Great humidity and friction resistance
Simple and fast joining method with adhesive-free joint
Extraordinary performance on reversed bending and flex fatigue
Belt
Type | Belt
Code | Thickness | Material | Tensile Strength Under 1% Elongation | Min.
Pulley
|
mm | pulley side /opposite side | N/mm | mm | ||
TC Belt | GC-TC15 | 1.5 | XNBR /XNBR | 7 | 20.0 |
GC-TC20 | 2 | XNBR /XNBR | 12 | 25.0 | |
GC-TC25 | 2.5 | XNBR /XNBR | 18 | 70.0 | |
GC-TC30 | 3 | XNBR /XNBR | 25 | 100.0 |
Another significant feature of polyester belt is their way of joint. For flat drive belts, usually there are three different methods for connecting- -finger jointing, skive/grind jointing, and lap jointing. Generally, PA sandwich belt is suitable for skive splicing, while TC-belt is connected through finger splicing.
When applying finger joint method, first have to consider whether the material owns the characteristics for being remelted or not, otherwise it will burn instead of melt. Materials as Polyester fabric, TPU, PVC etc is just satisfy the requirement for melting.
The way for finger splicing has several advantages: First, it’s easy and fast to join with only little experience demand, by using a single action cutter to cut appropriate dimension fingers on two ends of the belt, to be suitable for being inserted into each other and “cooked” on press machine. And it does not need adhesive for the connecting. Further more, it makes polyester core belts have a smooth joint.
Due to its’ unique properties, TC power transmission belt is a good choice for combining rather high speeds with reversed bending, compact driving configurations. GC can supply a TC-belts product portfolio to be applied in a wide range of machines and industries, such as packing industry, printing industry, textile industry, used on paper manufacturing machines, yarn processing machines, converting machines etc.
FAQ
1, What is your delivery terms?
Generally, GC accept EXW, FOB, CIF, CFR.
2, How about the lead time for mass production?
According to the specific quantity, normally demand 10-15 working days, and GC will try our best to meet your needs.
3,Where we can get products information from?
If you can’t find the information you need via our website, then the most efficient way is contact GC sales team directly by e-mail or phone.
