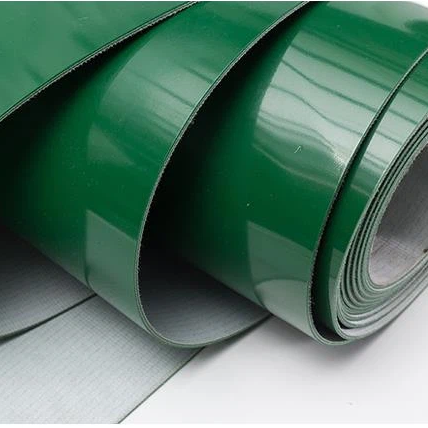

Conveyor belt is a large product category. According to the material, structure and application of the conveyor belt, it can be divided into two categories, light conveyor belt and heavy conveyor belt. GC mainly supplies light weight conveyor belts, they are made of following materials: PVC, PE or Silicone.
For plastic conveyor belt, GC can customize all kinds of belt surface, such as smooth, diamond, rough, golf, dot etc, with different colors such as green, black, with, blue, dark green etc. And the thickness of lightweight conveying belts from GC is 1-13mm with following common features:
Light and thin
Easy to clean
Good flexibility
Cost competitive
High tensile strength
Non-toxic and hygienic
Resistance to oil, chemical and corrosion
Polyvinyl Chloride conveyor belts consist of a synthetic fiber canvas core and PVC plastic covering, to meet the requirements of conveying light weight or medium weight. The synthetic fiber cores used in this belt are materials like polyester, nylon, Velen, carbon fiber and others. Generally, the PVC belt is made of 1 to 3 layers of fabric and 1-3 layers of plastic coverings.
Belt
Type | Belt
Code | Thickness | Tensile
Strength
| Tensile Strength
Under 1% Elongation | Working
Temperature
|
mm | mm | N/mm | ℃ | ||
PVC Conveyor Belt | GC-BZ1A10 | 1.0 | 90 | 90 | -10 ~ 80 |
GC-BZ2A15 | 1.5 | 170 | 170 | -10 ~ 80 | |
GC-BZ2A20 | 2.0 | 170 | 170 | -10 ~ 80 | |
GC-BZ2A25 | 2.5 | 210 | 210 | -10 ~ 80 | |
GC-BZ2A30 | 3.0 | 210 | 210 | -10 ~ 80 | |
GC-BZ3A35 | 3.5 | 305 | 305 | -10 ~ 80 | |
GC-BZ3A40 | 4.0 | 305 | 305 | -10 ~ 80 |
PE (key material for PE conveyor belts), the abbreviation of polyethylene, is the simplest polymer organic compound. It is a polymer material widely used in the world today. It is made of ethylene. According to the density, it is divided into high-density polyethylene, medium-density polyethylene and low density polyethylene. PE conveyor belt complies with the US FDA food hygiene standards, has good wear resistance and physical aging resistance, and is a durable conveyor belt product. The belt can be joined by thermoplastic joints or steel buckles, and the joints are firm and flat.
Molded with integral silicone or with silicone coated on the surface of the rubber conveyor belt, GC’s silicone conveyor belt has many advantages such as strong insulation, ozone resistance, weather resistance, radiation resistance, surface non-stickiness (anti-sticking); ability to withstand general acids, alkalis, salt inorganic substances and animal and vegetable oils; outstanding high and low temperature resistance (-10 ~ 260℃), elasticity good and easy to clean. GC’s high-temperature resistance silica gel conveyor belt has thickness ranging from 2mm to 5mm.
Belt
Type | Belt
Code | Thickness | Min.
Pulley
| Tensile Strength Under 1% Elongation | Tensile
Strength
|
mm | mm | N/mm | N/mm | ||
Silicone Conveyor Belt | GC-AM2220 | 2.0 | 80 | ≥8 | ≥100 |
GC-AM2230 | 3.0 | 80 | ≥12 | ≥160 | |
GC-AM3340 | 4.0 | 100 | ≥16 | ≥200 | |
GC-AM3350 | 5.0 | 120 | ≥20 | ≥240 |
The light conveyor belt from GC can be widely used in food and beverage processing, tobacco, electronics, textiles, printing and dyeing, machinery manufacturing, printing and packaging, paper processing, ceramics, marble, wood processing, automobile shell molding, cable traction, aluminum profile processing and other fields.
