Silicone bags are necessary for the production of decorative laminated glass. By vacuuming the vacuum bags, atmospheric pressure is obtained and the air between the film and the glass is discharged. Simultaneously heating the temperature to dissolve the EVA or PVB film and tightly bond the glass together. GC has great quality silicone vacuum bag for glass lamination furnace.
The vacuum silicone bag is the core component of the glass lamination furnace, which is composed of two pieces of silicone plate, multiple seals (such as EVA mountain type silicone bag sealing, EVA C type silicone bag sealing, and PVB silicone bag sealing), and a vulcanization integrated vacuum silicone bag suction nozzle and conduit. The silicone panel vacuum bag is the key component of the entire lamination furnace, and its quality directly affects the product quality of the laminated glass. The silicone vacuum bag from GC has flowing features:
Long usage life
Great tear and tensile strength
Chemical, oil, media and aging resistance
High temperature and pressure resistance
Non toxic, tasteless and environmental friendly
Standard Value | ||||||||||||||||
Tear strength | Tensile strength | Elongation | Hardness | |||||||||||||
≥30 | N/mm | ≥8 | Mpa | ≥450 | % | 55 ± 5 | Shore A | |||||||||
Cure condition: 170℃ x 10Min | ||||||||||||||||
Tear strength | Tensile strength | Elongation | Hardness | |||||||||||||
| 35 | N/mm | 8.5 | Mpa | 500 | % | 56 | Shore A | |||||||||

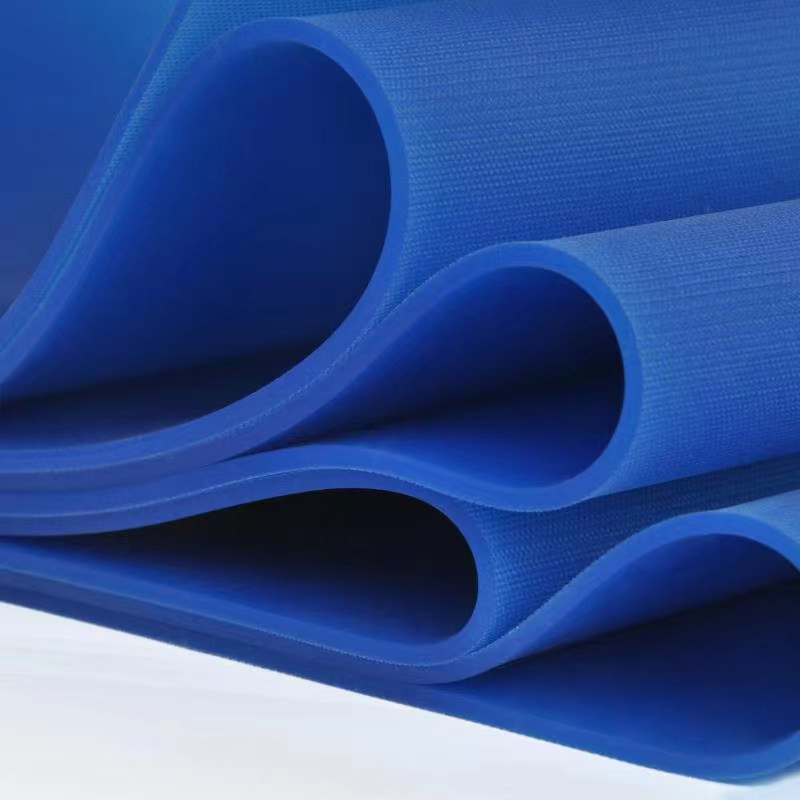

GC can supply to our customer from glass industry in the shape of only silicone sheet, and clients themselves to make the vacuum bag. Generally, we offer silicone sheeting with blue color for both two sides to glass lamination industry. The technical data as below:
Product
code | Thickness | Breaking Strength | Elongation | Tear Strength | Temperature Resistacne |
MM | (Mpa) ≥ | (%)≥ | (KN/m) ≥ | ||
GC-GLD120 | 2.0±0.2 | 8.5 | 450 | 40 | 220℃ x 72h |
Product
code | Thickness | Breaking Strength | Elongation | Tear Strength | Temperature Resistacne |
MM | (Mpa) ≥ | (%)≥ | (KN/m) ≥ | ||
GC-GLD130 | 3.0±0.2 | 8.5 | 450 | 40 | 220℃ x 72h |
