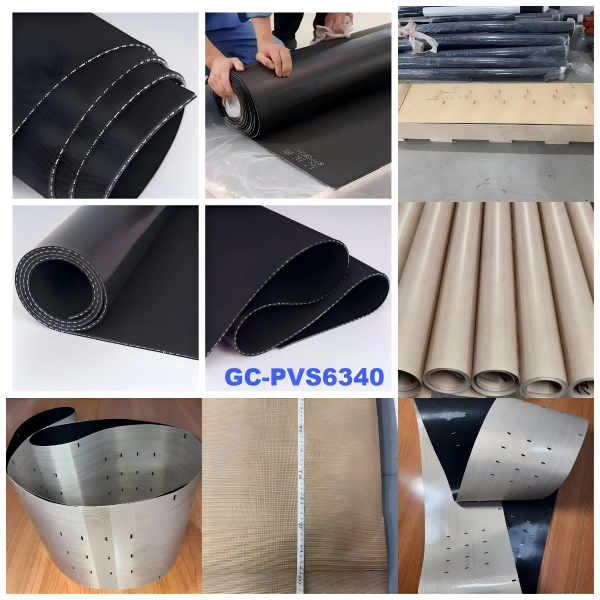

In the production of double-glass photovoltaic (PV) modules, the solar silicone membrane serves as the critical interface that transfers heat and pressure uniformly during the lamination process. However, this essential consumable is vulnerable to damage from multiple sources, including the lamination frame itself and the subsequent framing operations. Protecting the Silicone Membrane For Double-glass PV module lamination requires a comprehensive approach that addresses process parameters, chemical protection, and mechanical handling practices.
Lamination pressure is one of the primary causes of physical damage to the Silicone Membrane Sheet For Solar PV Modules Lamination. When processing double-glass modules, especially those using 2.0mm ultra-thin glass, the glass itself becomes more sensitive to pressure. Excessive or uneven pressure distribution can lead not only to glass breakage but also to irreversible indentations, creases, or even tears in the silicone membrane. Industry best practices recommend maintaining lamination pressure strictly between 0.8 and 0.9 bar, ensuring synchronous pressure between the upper and lower chambers to avoid localized overloading.
Temperature management is equally critical for protecting the solar silicone membrane. Rapid heating rates create thermal stress due to the differential expansion coefficients between glass and silicone material. To mitigate this, the heating rate should be limited to no more than 5°C per minute. Implementing a multi-stage temperature curve—preheating, melting, cross-linking, annealing, and gradual cooling—helps reduce residual stress that could otherwise degrade the Silicone Membrane For Double-glass PV module lamination over repeated cycles.
The most significant chemical threat to the Silicone Membrane Sheet For Solar PV Modules Lamination comes from EVA (ethylene-vinyl acetate) outgassing during the lamination process. At temperatures ranging from 145°C to 155°C, EVA releases acidic volatile compounds that gradually corrode the silicone surface, causing it to harden, become brittle, lose elasticity, and ultimately develop cracks or excessive stretching. These damaged areas compromise the membrane's ability to maintain uniform pressure distribution.
The most effective countermeasure is to place a protective PTFE-coated fiberglass fabric between the module stack and the solar silicone membrane. This isolation layer acts as a barrier, preventing acidic gases from directly contacting the silicone surface. Additionally, selecting high-purity, low-volatility EVA films and ensuring thorough, rapid vacuum extraction during the lamination cycle significantly reduces the generation of harmful outgassing products.
The framing stage presents a often-overlooked but significant risk to the Silicone Membrane For Double-glass PV module lamination. If the aluminum frame's slot dimensions are too tight, or if internal edges contain burrs or sharp protrusions, the shear and compression forces generated during frame insertion can not only damage the glass but also inadvertently scratch, puncture, or tear the silicone membrane through accidental contact.
Proper framing practice dictates maintaining a 0.3 to 0.5 millimeter gap between the frame and glass to accommodate thermal expansion, while ensuring all internal edges are smooth and deburred. In daily operation, strict measures must be taken to prevent hard contaminants such as iron filings, sand particles, or glass shards from entering the membrane area. These microscopic particles create stress concentration points under lamination pressure, leading to localized damage to the Silicone Membrane Sheet For Solar PV Modules Lamination. Furthermore, aggressive solvents or acidic/alkaline cleaning agents should be strictly avoided; instead, neutral detergents or isopropyl alcohol should be used, with regular cleaning of residual EVA deposits from the membrane surface.
Avoiding damage to the solar silicone membrane requires a systematic, multi-layered protection strategy. Through precise control of lamination pressure and temperature profiles, effective isolation against EVA chemical corrosion, and strict adherence to framing and cleaning protocols, manufacturers can significantly extend the service life of the Silicone Membrane For Double-glass PV module lamination. This not only reduces costly consumable replacement frequency but also ensures consistent lamination quality and high production yields for double-glass PV modules.
