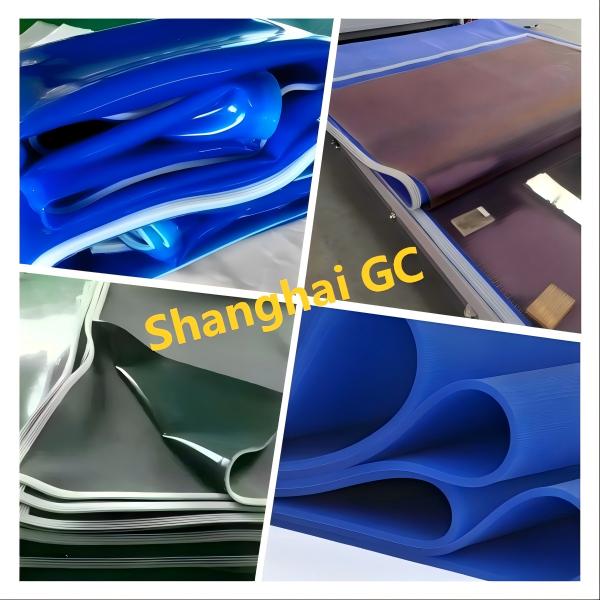

Choosing the correct thickness is one of the most important factors when selecting a silicone vacuum bag for laminated glass. In EVA and PVB glass lamination, the silicone sheet must provide reliable vacuum sealing, sufficient flexibility, good heat resistance, and long service life. The ideal thickness depends on the glass size, lamination temperature, vacuum system, and furnace configuration.
For most glass lamination applications, silicone rubber sheets are commonly available in thicknesses such as 2 mm, 3 mm, 4 mm, and 5 mm. A 3 mm or 4 mm silicone sheet is often selected because it provides a practical balance between flexibility, mechanical strength, heat resistance, and durability.
A thinner silicone vacuum bag for laminated glass, such as a 2 mm sheet, can provide excellent flexibility and conformability. It can be useful for relatively small glass panels or applications requiring the silicone membrane to follow complicated shapes. However, thinner sheets may have lower resistance to tearing, stretching, and mechanical damage.
A 3 mm or 4 mm vacuum bag for laminated safety glass generally provides better durability for regular industrial production. These thicknesses can withstand repeated vacuum cycles while maintaining good elasticity and sealing performance. For many automatic glass laminating lines, a 4 mm silicone sheet can be a suitable choice when durability is a major consideration.
An EVA Laminated Glass Vacuum Bag must maintain stable vacuum pressure while operating at elevated temperatures. EVA lamination commonly requires the silicone membrane to remain flexible throughout repeated heating and cooling cycles.
For this reason, an EVA Laminated Glass Vacuum Bag should not be selected based only on thickness. Silicone rubber formulation, tensile strength, elongation, tear resistance, and temperature resistance are equally important. A high-quality 3 mm or 4 mm EVA Laminated Glass Vacuum Bag can provide a good combination of flexibility and service life.
When the glass size is large or the production line operates continuously, a thicker silicone sheet may provide additional mechanical durability. However, excessive thickness can reduce flexibility and make installation more difficult. Therefore, the thickest available silicone sheet is not automatically the best solution.
The operating conditions of the equipment should always be considered when selecting a vacuum silicone bag for glass laminating oven applications. Large glass panels, frequent production cycles, higher mechanical stress, and aggressive handling can increase the risk of membrane damage.
A vacuum silicone bag for glass laminating oven should also provide consistent vacuum distribution across the entire glass surface. If the sheet is too thin, localized stretching can occur around glass edges and corners. If it is excessively thick, the membrane may require greater deformation to achieve close contact with the glass assembly.
Therefore, manufacturers should evaluate the actual furnace dimensions, glass thickness, vacuum pressure, heating temperature, and production cycle before choosing the silicone sheet thickness.
A replacement vacuum bag for glass laminator should match the original membrane's dimensions, thickness, silicone formulation, and operating requirements whenever possible. Replacing a damaged membrane with an unsuitable thickness can result in vacuum leakage, uneven lamination, or premature failure.
When purchasing a replacement vacuum bag for glass laminator, buyers should provide the equipment model, membrane dimensions, working temperature, glass size, and application, such as EVA or PVB lamination. This information allows the supplier to recommend a suitable specification.
Ultimately, selecting the best thickness for a silicone vacuum bag for laminated glass requires balancing flexibility, strength, vacuum performance, and service life. For many applications, 3 mm to 4 mm silicone rubber sheet offers a practical starting point, while specialized production conditions may require thinner or thicker solutions. A properly selected vacuum bag for laminated safety glass can improve lamination consistency, reduce membrane replacement frequency, and support stable long-term production.
