The structure of bottom hanging folder gluer

The bottom hanging folder gluing machine has the characteristics of reasonable structure, flexible and convenient use, and wide application range. Its structural feature is that the two ends of the horizontal sliding rod are equipped with L-shaped legs, and the lower ends of the two legs are hinged to the base through a pin shaft. The front lower part and the upper rear part of the hinged part on the base are respectively equipped with front flipping limit blocks and rear flipping limit blocks, and the horizontal sliding rod is flipped forward.

When the side legs contact the front flip limit block, the side legs are in a horizontal position, and the lateral sliding bar is flipped backwards. When the side legs contact the rear flip limit block, the side legs are in a backward tilt state. The lateral sliding bar is equipped with a hook bottom component, which includes a slider. The slider is sleeved on the lateral sliding bar, and the upper end face of the slider is equipped with a slider fastening bolt and a longitudinal cantilever. The front of the longitudinal cantilever is equipped with a long hole, The cantilever fastening bolt is connected to the slider through a long hole, and the front end of the longitudinal cantilever is connected to the vertical rod. The longitudinal cantilever part is equipped with a vertical rod installation hole, and the front side of the vertical rod installation hole is equipped with a clamping arm. One side of the clamping arm is equipped with a vertical rod fastening bolt, and the lower end of the vertical rod is equipped with a hook bottom strip base. The side of the hook bottom strip base is equipped with a rotating seat, which is a hollow structure and is equipped with a hook bottom strip hole that matches the hook bottom strip, The back end of the hook bottom strip passes through the hook bottom strip clamping block, and one side of the hook bottom strip clamping block is equipped with a hook bottom strip fastening bolt.

At the same time, a limit strip is also installed on the base of the bottom hook strip. The limit strip is located below the bottom hook strip, with its front end located below the inner side of the front hook part of the bottom hook strip, and its rear end fixed in the limit strip clamping block. The side of the limit strip clamping block is equipped with a limit strip fastening bolt.

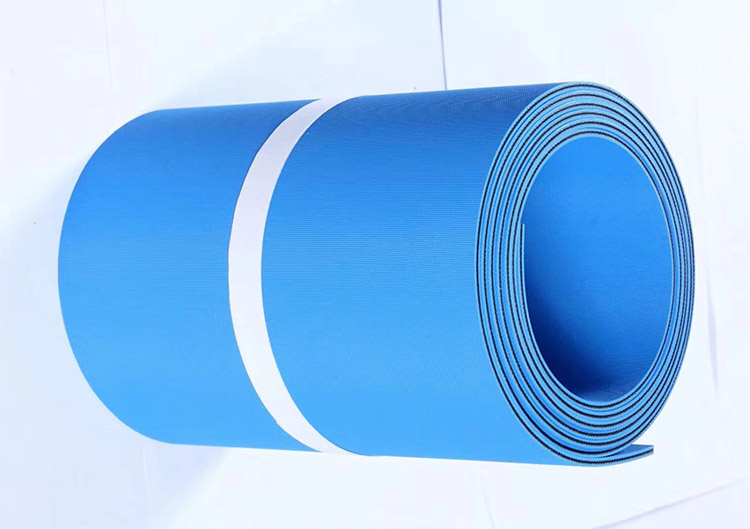

GC can provide great quality folder gluer belt.
