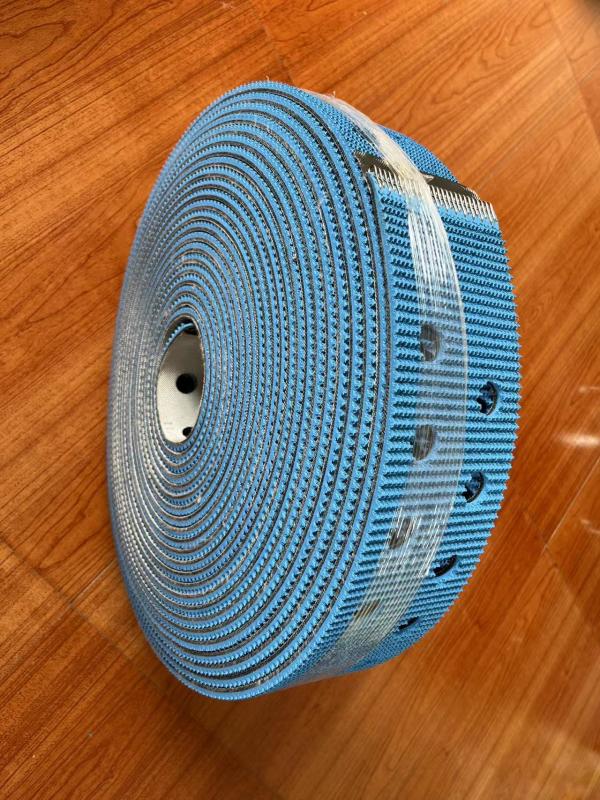

Some Types of Rough-Top Conveyor Belt

With the gradual popularization of industrial belts, the types of industrial belts are also increasing, and the quality is gradually improving and improving. Today we are going to talk about rough-top conveyor belts (also named patterned conveyor belts). Currently, the design technology of rough-top conveyor belts in China is becoming increasingly exquisite, which is also a driving force for continuous innovation in the field of mechanical conveyor belts.

The variety of rough-top conveyor belts is also complex and diverse, among which herringbone conveying belts, strip conveying belts, granular conveying belts, and fan-shaped conveying belts are commonly used. Of course, these types of rough-top conveyor belts also have some differences. Below is an introduction to the characteristics and uses of these types of patterned conveyor belts:

1. The characteristics of the herringbone pattern conveyor belt: The belt surface has a "herringbone" pattern higher than the belt body, which can be open or closed. Each pattern can be divided into three types: high, medium, and low. Suitable for conveying powder, granular, and small materials with an inclination angle of ≤ 40 degrees, as well as bagged materials.

2. The characteristics of strip pattern conveyor belts: There are strip patterns on the belt surface that are higher than the belt body, and the patterns are divided into three types: high, medium, and low. Each pattern can be divided into sparse, dense, and other forms according to the arrangement spacing. Suitable for horizontal conveying of packaging materials with an inclination angle of ≤ 30 degrees. If the groove is formed, it can replace the herringbone pattern.

3. The characteristics of granular and pockmarked conveyor belts: There are granular patterns on the belt surface that are higher than the belt body or recessed into the belt body, and the pits can also be made into square holes, prisms, and cloth patterns. The convex grain pattern is suitable for conveying soft packaging materials or materials that require grip (such as cardboard boxes) or non sliding conveying. The concave granular pattern is suitable for conveying granular materials with an inclination angle of ≤ 45 degrees.

4. The characteristic of a fan-shaped conveyor belt is that there is a semi fan-shaped (or 1/4 circular) pattern on the belt surface. When the tape is grooved, the pattern becomes fan-shaped (or semi circular) and belongs to the high pattern category. Suitable for conveying powder, particles, and block materials with a large inclination angle of ≤ 60 degrees.

The types of rough-top conveyor belts are divided into ordinary, oil resistant, acid and alkali resistant, heat resistant, etc. according to their coverage performance：

Form: fishbone pattern, U-shaped pattern, herringbone pattern, cylindrical pattern, etc.

Beltwidth: 300mm-2200mm

Pattern height: 5, 10, 15, 20, 25, 30 (mm).

Pattern spacing: 125, 200, 250, 330, 400, 500 (mm).

Features: The inclination angle is 0-45o to prevent material sliding and improve conveying capacity.
