Classification of Industrial Belts For Box Pasting Machine

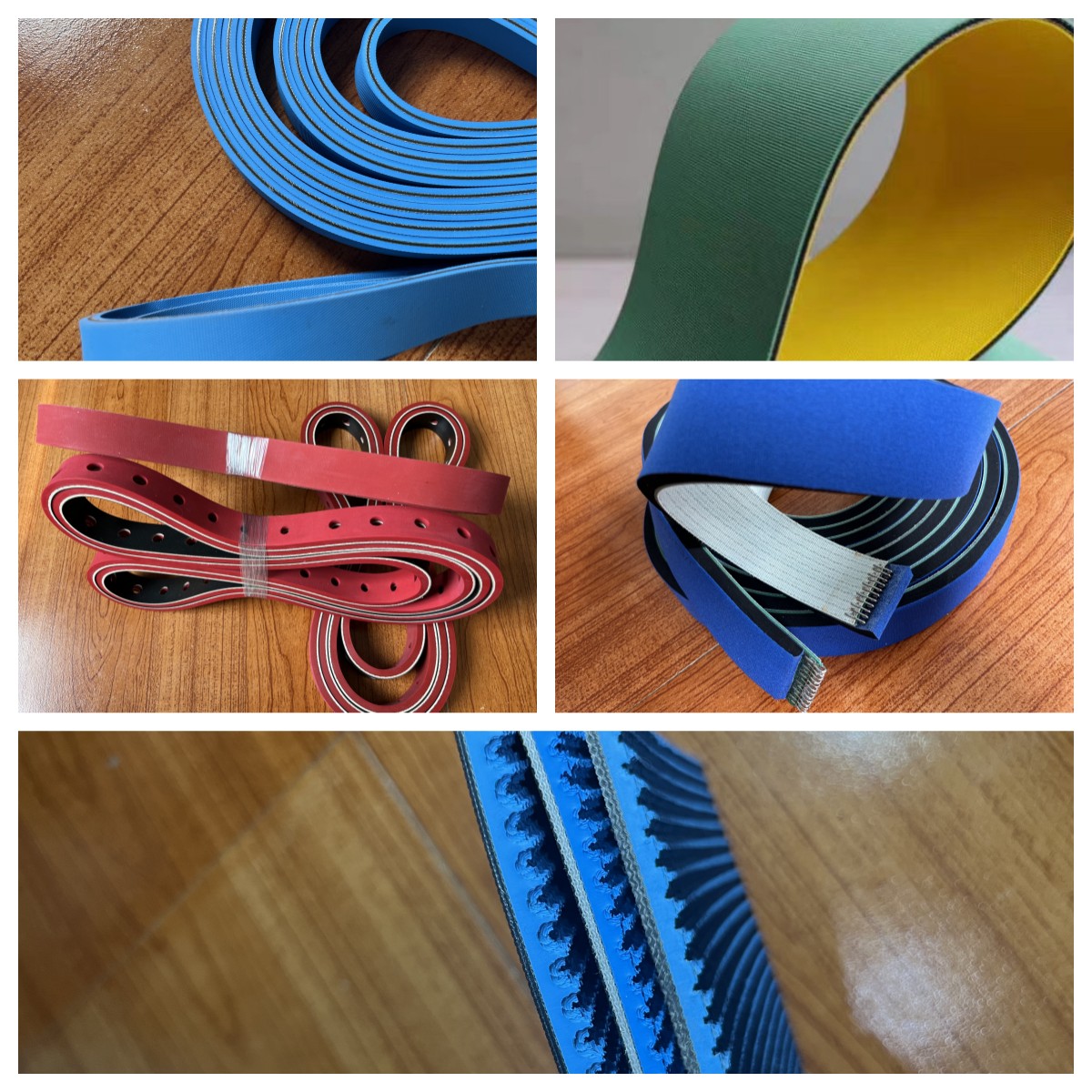

The industrial belts used in the box pasting machine vary depending on the process, and can be divided into three categories according to their purpose: paper feeder belts, folder gluer belts, and perforated belt


1, Paper feeder belt: used for feeding paper into the box pasting machine head, with commonly used thicknesses of 6mm, 8mm, and 10mm. It can automatically and continuously feed paper without overlap. Paper feeder belts can be divided into flat paper feeder belts, toothed paper feeder belts, and grooved paper feeder belts based on the differences in the bottom and surface of the belt. The flat paper feeding belt, due to its smooth surface and delicate texture, has wear-resistant, non-skid, and powder shedding properties, and low friction loss; The toothed paper feeding belt has precise transmission ratio, high efficiency, good cushioning and vibration reduction capabilities, and low noise due to its non slip meshing transmission; And the grooved paper feeding belt is because there are PJ or PH small grooves on the surface, which can increase the friction force of product transportation and operate at high speed.


2, Folder gluer belt: In the pre folding machine, the creases on the paper box need to be pre folded and clamped through the origami tape to make it easier for assembly on automatic production lines. Usually, high-speed nylon sandwich transmission belts with double-sided rubber intermediate base are used, with thicknesses of 3mm, 4mm, and 6mm. They are light in weight, high in strength, small in elongation, good in oil resistance and wear resistance, soft and energy-saving, and have specific patterns on the surface, ensuring friction when conveying paper! It can be divided into two types: double-sided blue folder gluer belt or yellow green folder guler belt.


3, Perforated belt: also known as perforated suction belt/vacuum belt, refers to the process of punching holes on the surface of the rubber belt, which plays a suction role and is conducive to precise paper feeding. Combined with the design of the machine itself, the paper is produced in a reasonable and orderly manner. Perforated belt is commonly used for the transmission of paper mounting machines and corrugated paper. According to the different materials, perforated belt can be divided into two types: nylon sandwich perforated belt and red rubber perforated belt. Various punching types, diameters, and spacing can be determined as needed.
